Welcome!

This is Lockbook's documentation site. Lockbook is an open source note taking app. This website is dedicated to documenting our product for our users. As well as documenting how to contribute to Lockbook.

To get started here are some places of significance:

  • Github is where you can find the source code for everything we work on.
  • Github Issues is where you can see a list of all known defects, and be notified when they're resolved. See Bug Reporting for more info.
  • Discord is where all our team communication takes place.

Values

Understanding our staff's is the best way to learn our product deeply and form an intuition for decisions we've made or will make in the future.

Security

We build Lockbook to be secure and private. We use high security defaults, for example users generate a private key, rather than a password which can be guessed or re-used. This private key is the only thing which lets a user access their content. There is no way to recover a key, implying the user is the highest authority for access control, not Lockbook staff.

Privacy

Similarly, we end-to-end encrypt all possible data, making it's content only accessible to the customer and the people they choose to collaborate with. This even applies to the names of files. The only data that Lockbook staff can access is the data that is technically required for the existence of our server.

Lockbook staff can access, for-instance: how many files you have, how large your documents are, and the overall structure of your file-tree.

Transparency

Many products claim they're secure and private, fewer still will use strategies like end to end encryption to limit their own staff's access, even fewer will open source all the code they write so you don't have to trust that the product actually works the way it claims to.

We believe that real security and closed source implementations are contradictory ideas.

Apart from our source code, most of our communication also happens publicly, in a discord server that anyone can join. All of product planning, defect triage, and overall prioritization also happens in public through github issues.

Low time preference

We enjoy working on Lockbook and take our time to build it right. Having a native client for each platform, building editing experiences from the ground up are the types of things that indicate our long term view of building Lockbook.

Since 2020 our staff has been working out of pocket to bootstrap Lockbook with a sustainable business model (rather than going the traditional VC route). This decision, while difficult, we hope will pay dividends and allow us to build in accordance with the values specified in this document indefinately.

Customer Centric

With most decisions we're thinking about what the healthiest outcome is for our customers. We chose open formats for editing text (markdown) and drawings (svgs) because it's in your best interest to be able to take the content you generate to any other platform in the future.

As a team we strongly believe in dog-fooding our product. Being customers ourselves is the best way to understand where our product is weak and requires further investments.

Installing Lockbook

For convenience, we try to make Lockbook as widely available as possible.

Being open source, you can always build Lockbook yourself.

Mobile

macOS

Linux

CLI

Windows

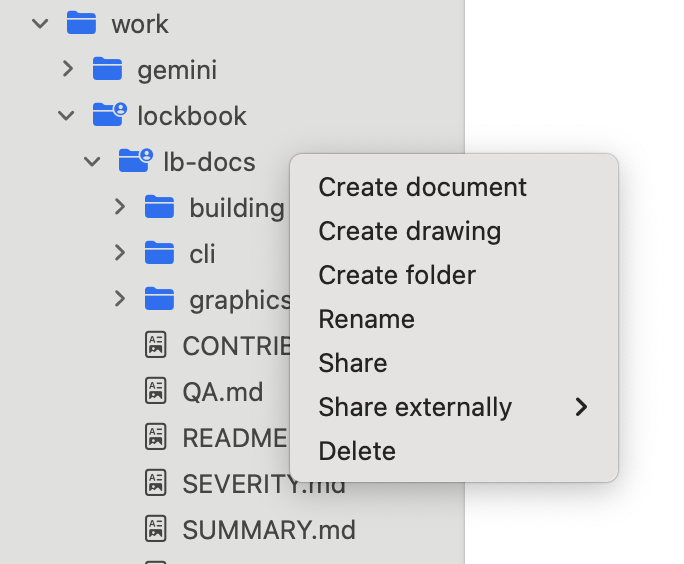

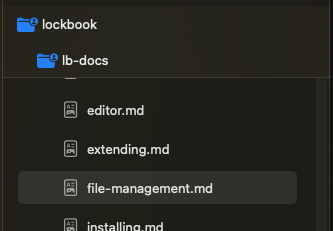

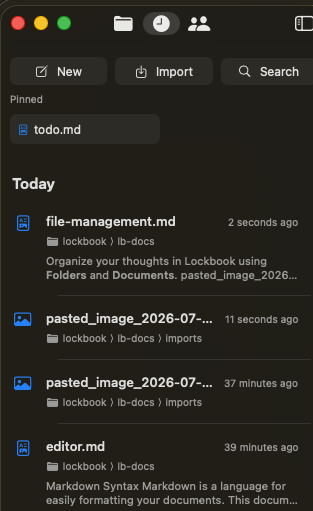

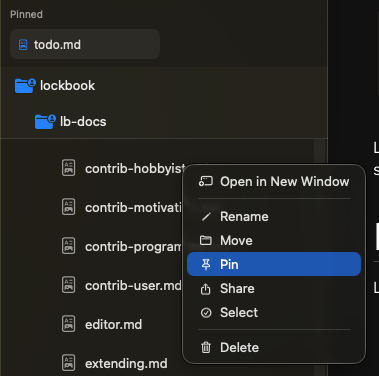

Organize your thoughts in Lockbook using Folders and Documents.


We draw on a computer's file systems as design inspiration for our file management as it's a familiar, portable, and scalable pattern.

Documents

All documents within Lockbook are compressed, encrypted, and backed up to our server. We calculate the usage of your files after compression has taken place. Compression ratios of 3-10x are not uncommon depending on your most commonly used file types.

Uniqueness

A File (either a document or a folder) must have a name that's unique to it's directory. The filename is encrypted by your device and our server enforces it's unique-ness using HMACs. See secret_filename.rs for implementation details.

Collaboration

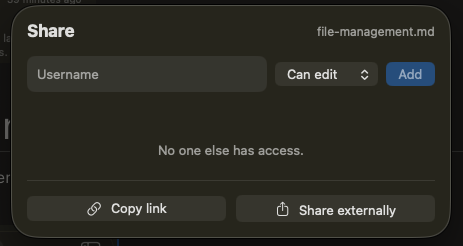

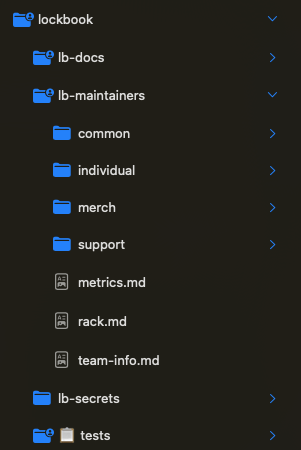

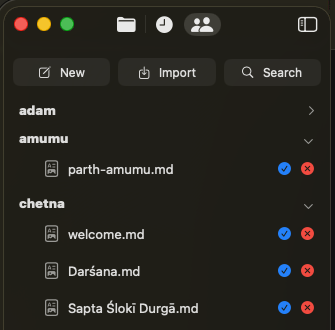

You can share a document or a folder with your collaborators. Your collaborators "accept" the share by creating a link to your shared file and placing it anywhere. The person receiving a share can also name the link whatever they want to. This provides a significant amount of flexibility for both parties to organize their file trees however they see fit.

For instance, if Parth and Travis want to have a shared folder, Parth can call the folder Travis, and Travis can call the folder Parth. By default the original filename is preserved until either party tries to rename the shared folder. This indirection is only present for links (so only present for the actual shared folder or document), children of the shared folders have the same name for all parties.

Collaborating in this way also allows you to manage access for various parties. For the Lockbook team, we have a single lockbook folder that leadership has read & write access to. Inside this folder we have an lb-maintainers folder which maintainers many maintainers have read & write access to. Next to the lb-maintainers folder there's lb-docs which is powering this documentation site, which many people have read-only access to. When we were designing our logo, we shared the logo folder with the graphic designers we were working with.

Only the owner of a shared directory will be billed for the space taken up by that directory, enabling low-cost and frictionless team usage.

Offline Access

Lockbook has made signficant investment in supporting offline access. You can access, edit, and organize your files while you're offline. Your client will store the changes you made and reconcile them with our server when you come back online. Textual and SVG content will be merged. Non-conflicting file operations will also be persisted. Some conflicting organization operations (two people renamed the same file) may be lost.

Active areas of investment

  • We'd like to make our "pending shares" screens significantly more usable, allowing you to see all the files people have shared with you without needing to create links: https://github.com/lockbook/lockbook/issues/2744
  • Lockbook should be able to handle files of ~50MB without a problem. Users with powerful devices and fast network connections may be able to upload files up-to ~500MB in size. We'd like to significantly improve the experience of uploading large files and also being smart about which devices pull these files: https://github.com/lockbook/lockbook/issues/1947
  • Version history is a higly requested area of ongoing investment. It involves an evolution to many of our core data structures and therefore must be done carefully. For more information see here: https://github.com/lockbook/lockbook/issues/190

CLI

Lockbook's CLI is built around a sophisticated tab completion behavior. Install the cli using your favorite package manager or reach out to us if yours isn't listed there. You can configure our CLI to open your favorite text editor allowing you to rapidly jump to your desired note and edit it quickly.

See lockbook completions for configuring completions manually. Use the LOCKBOOK_EDITOR environment variable to choose a supported editor.

lockbook export can copy files from within your lockbook to your filesystem, making it easy to create decrypted backups.

See extending for more CLI highlights.

Extending Lockbook

Lockbook is built to be extensible at every level.

CLI

Lockbook's CLI is built around a sophisticated tab completion behavior. Install the cli using your favorite package manager or reach out to us if yours isn't listed there. You can configure our CLI to open your favorite text editor allowing you to rapidly jump to your desired note and edit it quickly.

lockbook stream subcommand can receive and send bytes to and from other terminal programs. See what you can do with dmenu for inspiration.

lockbook export can also be used to snapshot directories to disk, this website is powered by such a script. Here is another example.

lb-rs

All of our core functionality is packaged in a rust crate: lb-rs. See api docs here. Use this library to perform any operation you can do with a lockbook client. View, edit and organize your content.

lb-sdk

Many languages will make it easy to consume C bindings. If you'd like specific support for your programming language reach out to us.

lb-fs

lb-fs is an experimental virtual file system implementation backed by lockbook. Presently the implementation uses nfs, though platform specific implementations may be explored later to deliver a better user experience. We also intend to include this functionality directly in our desktop apps when it's more stable.

Currently lb-fs can be invoked from within our CLI on Linux & macOS, see lockbook fs for more information. Using lockbook fs like this can enable you to experiment directly with file types that don't have dedicated experiences associated with them (think CAD, music scores, or other obscure third party formats and workflows).

lb-fs may also be the best way to use your own text editor as markdown link resolution works as expected there.

Contributing

Lockbook is grass-roots open-source project that began in 2020. We're on a mission to create a sustainable business guided by values we believe will create better software.

If these values resonate with you and you'd like to join us, we'd be honored to have you be a part of this journey.

You can contribute to lockbook simply by using it, thinking deeply about the product and giving us feedback. If you enjoy using Lockbook, sharing it with like minded people also is immensely helpful. See more here.

Lockbook is built to be extensible. We welcome traditional forms of open source contributions. Things like building bindings to the lb-rs library in new languages, packaging lockbook for new platforms, or just building interesting workflows on top of Lockbook using our CLI and writing about your experiences in a blogpost are all great ways to help grow the project. See more here.

Finally if you're a software engineer with expertise in Rust, Kotlin or Swift (the primary languages that Lockbook is written in) and you're interested in contributing to any of our research-grade problems checkout this.

Contrib basics

If you have a bug, our priority is to make it as easy to receive that bug as possible. You can join our discord and report it there, or you can create a github issue, and from there a maintainer will triage it further.

Similarly most discussions / questions happen on discord. Don't be shy, hop in and start a conversation!

As a user

Once you have Lockbook installed, you can contribute to Lockbook by using it and sharing with like minded people who share our values.

Finding bugs and reporting them to us is a great way to help make Lockbook better.

As you use our product if you have insight that you think would help you use Lockbook in more ways, or allow you to use Lockbook with more people we'd love to hear from you on our Discord.

At the moment we're a completely out-of-pocket funded operation and your financial support goes a long way. Use the app and convert to premium if you're sold on our product.

If you'd like to make a more substantial contribution reach out to us on Discord.

You found a bug!

First of all, we're sorry.

Please tell us about this bug! As the person encountering this bug your only obligation is to persist the information about this bug somewhere.

If you have a Github account you can create a Github Issue and someone on our team will be in touch. Here are some ways you can help us:

  • Search to see if the issue exists already. Feel free to add more information to the original issue, even if it's just a reaction to tell us that this is something you'd like fixed.
  • If possible (or relevant) try to capture a video of you encountering the problem. Try to provide us with steps to reproduce the problem.
  • Go into settings, and copy the "debug info". It will contain no secrets, should be short enough for you to review. If possible, please attach this to your bug report. This contains the answer to a number of the questions we'd like to ask you (like what platform you're on, or what was the nature of the last crash Lockbook encountered).

If you don't have a Github, you can also make us aware of bugs using Our Discord using the Support channel.

As a hobbyist

Lockbook is very extensible. Backing up, syncing and collaborating bytes in different places is at the heart of most projects. See how far you can get by keeping all your bytes under the same (trustworthy) roof. Reach out to us if any of our APIs are falling short. Show off what you built in our discord! Here are some of our favorite contributions:

Experiments that were ultimately added to Lockbook itself:

Contributing To Lockbook as a Programmer!

We're excited you want to contribute. Before you dive into code you should understand our values and you should be be a user. You should also be in our discord. This page aims to be a live document you can use as a source of inspiration, in addition to browsing all our github issues, especially the ones tagged good first issues.

Lockbook is a project with massive surface area with the need for all types of contributors. Most of the codebase is in Rust, but there is critical code in Swift, Kotlin and other languages as well. Our workload includes:

  • UX thinking
  • UI development (Native & Cross Platform Rust)
  • Data Structures and Algo work (we model a lot of trees)
  • Scaling our libraries and backend
  • Devops and Internal tooling

Rust Contributions

lb-rs is the heart of our Rust operation. It's a library that's responsible for our cryptography, offline operations, networking, storage, and more. All lockbook clients, regardless of what language they're written in use this library (with the power of foreign function interfaces). See the lb-rs label for more info.

Similarly workspace is the cross platform UI implementation of our tab strip, editing experience and more. It's presently written using egui, an immediate mode ui framework (similar to how game dev methodology). See the workspace label for more info. Workspace houses our markdown editor as well as our canvas, some of our core editing experiences.

Our egui implementations are wrapped in integrations written by our team to provide our app with a rich user experience and populate events missing from winit. We send custom events through to egui for things like image paste, and we'd like to invest deeper in these integrations to provide a richer stylus integration on Windows. The windows & linux labels refer to these integrations.

lb-rs, server, and cli make use of some more exciting technologies documented in our blog:

Much of our infrastructure operations are described in lbdev powering most of our developer operations. We'd like to automate the process of shipping our code more often and to more places.

Native UI Expertise (Swift / Kotlin)

Our apps on Android, and on Apple Platforms have a significant amount of native code to power a better user experience. When trying to decide whether we're going to implement something in Rust or in a Native framework we just ask the question which will lead to a better user experience. On most platforms we've implemented the file tree, search, settings and much more in in the native platform.

There are plenty of bugs to fix, and deeper connections to the host device to make. We'd like to have widgets, assistant integrations, and more on these host platforms.

Reach Out!

All of these resources help you understand the various ways you could contribute, but if you're serious about joining our team, start a conversation with us! In that conversation we can understand your experience level, your interests and your goals and get you pointed in the right direction.

lbdev

  • build workspace
  • run lockbook on annoying platforms
  • release operations

install: cargo install --path utils/lbdev update: lbdev update completions for fish: lbdev fish-completions.

Release Ops

  • We release often, every release generally we release everything, and everything has the same version.
  • Our version encodes the date of the batch of changes in yy.mm.dd format.
  • We update this often enough so our server can accurately estimate how much usage a particular batch of code is receving.
  • During the development cycle (like on days of release) we may have to increment this more than once in a day, and on these dates we'll just increment the patch field (to effectively the following day's date). Incrementing this often enough also allows us to more clearly distinguish between the code engineers are running on master vs. the code that's released to consumers.

Building

Build CLI

Prerequisites:

  • Stable rust toolchain

Steps:

  • In /clients/cli run cargo build

Note: to install lockbook on your PATH you can use cargo install --path .

Build Linux

Prerequisites:

  • Computer with a linux distro
  • Stable rust toolchain

Most linux distros require the installation of the following packages:

  • build-essential
  • libssl-devel
  • pkg-config
  • libxkbcommon-x11-dev
  • libgtk-3-dev (for rfd)

Steps:

  • In /clients/linux run cargo build

Nix users can start a nix-shell in the clients/linux directory which will configure all the dependencies.

Build Apple

Prerequisites:

  1. Computer with macOS
  2. Standard iOS/macOS toolchain (Xcode)
  3. Stable rust toolchain
  4. cbindgen, which generates header files
cargo install cbindgen
  1. Toolchain targets for building lb-rs for iOS, macOS, and various simulator targets
rustup target add aarch64-apple-ios x86_64-apple-ios aarch64-apple-darwin x86_64-apple-darwin aarch64-apple-ios-sim

Build native libraries and bootstrap swift workspace

From our repository root, install lbdev, our dev utility:

cargo install --path utils/lbdev

This will let you execute lbdev apple ws all. This will now allow you to build in XCode.

Build in Xcode

After building the native libs:

  1. Open the clients/apple folder in Xcode.
  2. In Xcode, open the "Signing & Capabilities" tab and set the team to your personal developer email.
  3. Change the build target to MacOS or iOS and hit the Run button.

Launching via lbdev

XCode needs to be able to do these things before lbdev will start to work.

lbdev apple run macos will build all the rust and swift and run the macOS app to the current Macbook.

lbdev apple run ios <device> allows you to select an iOS device and send a build to it. This is mostly a shortcut for people who have setup these devices already in XCode.

Build Android

Prerequisites:

  • Stable rust toolchain.
  • Android SDK. The version mentioned in this build.gradle, at the targetSdkVersion field.
  • Android NDK. Set the environment variable ANDROID_NDK_HOME to the NDK's location.
  • Native development support for cargo:
cargo install cargo-ndk
  • Android targets for cargo:
rustup target add aarch64-linux-android armv7-linux-androideabi i686-linux-android x86_64-linux-android

Steps:

  • Run cargo run -p lbdev -- android ws which will build workspace for android.
  • Choose one:
    1. Command Line
      • In clients/android run ./gradlew assemble.
      • The APK will be located at clients/android/app/build/outputs/apk/debug.
    2. Android Studio
      • Download and install Android Studio.
      • In Android Studio open Lockbook Android at the /clients/android.
      • Configure Android Studio to use the SDK installed.
      • Build the APK using the hammer button on the toolbar. Once built, the bottom information bar will give you the option to locate the APK (clients/android/app/build/outputs/apk/debug/).
      • You can also run the APK directly on your device:
        • Enable USB debugging on your Android device.
        • Connect it to the machine running Android Studio.
        • On the toolbar, you will be given the option to directly run the APK on your device.

Build Windows

Prerequisites:

  • Computer with Windows
  • Stable rust toolchain

Steps:

  • In /clients/egui run cargo build

lb-rs & server

lb-rs & server just require a stable rust toolchain to build.

lb-rs can be pointed to a server via the API_URL env var, by default clients are engineered to connect to our production server: https://api.prod.lockbook.net.

tests are configured to connect to https://localhost:8000.

you can run the server locally by executing ./run-server.sh in utils/dev. This will source a set of environment variables intended for local development.

Sync v3

this document is slightly out of date, it doesn't contain documentation on work like safe_write which enables near-real-time collaboration. It will be updated soon.

Overview

Sync v3 is the latest iteration of our logic that syncs users' file trees across devices. It is designed under the following key constraints:

  • The state of a user's file tree must satisfy certain invariants at all times, on all devices (including the server), even in the event of process interruptions and failures.
  • Users' file contents and names must not be readable by the server, but users can share files and folders with other users.
  • Users must be able to view and edit files offline, then sync frictionlessly, even with intervening edits made to files on other devices.
  • The performance of the system must not suffer as a result of typical usage, which presents a number of challenges worth discussion

These design constraints motivate the following high-level design, which will be flushed out in more detail after a further discussion of the constraints:

  • The client maintains two versions of the file tree: one for the current local version (local), and one for the last version known to be agreed upon by the client and server (base).
  • The server maintains one version of each user's file tree (remote)
  • To perform a sync, the client pulls remote from the server, 3-way merges the changes with local and base, and pushes those updates to the server.

Constraints

File Tree Invariants

Before discussing the invariants, it is helpful to understand the data model. For the purposes of Sync v3, each file has:

  • id: an immutable unique identifier
  • file_type: an immutable flag that indicates if the file is a folder or document. A file is either a document, which has contents, or a folder, which can have files as children.
  • name: the file's name. Clients encrypt and HMAC names before sending them to the server, so while the server cannot read file names, it can test them for equality.
  • parent: the file's parent folder (specified by the parent's id). The root folder is the folder which has itself as a parent (it's name is by convention it's owners username and it cannot be deleted).
  • deleted: a boolean flag which indicates whether the file is explicitly deleted. A file whose ancestor is deleted need not be explictly deleted; if not, it is considered implictly deleted (all implicitly deleted files are eventually explicitly deleted). A file that is no longer known to a client at all is considered pruned on that client.

This data model lends itself to four operations, which (aside from create) correspond to modifications to the three mutable fields of a file:

  • create: create a file
  • rename: change the file's name
  • move: change the file's parent
  • delete: delete the file (cannot be undone)

With that data model in mind, these are the four main invariants that must be true of a user's file tree on all devices at all times:

  • Root Invariant: there must always be exactly one root and all modifications to roots are invalid. This is straightforward to enforce.
  • Path Conflict Invariant: no two files may have the same name and parent. An example challenge is when a user creates a new file on each of two clients with the same name and parent, then syncs them both.
  • Cycle Invariant: every non-root file must not have itself as an ancestor. An example challenge is when on one client the user moves folder A into folder B and on the other client moves folder B into folder A, then syncs them both.
  • Orphan Invariant: every non-root file must have its parent in the file tree. To keep client storage from growing unboundedly, clients eventually prune deleted files (remove all mentions of them from durable storage). If the design does not pay careful attention to the disctinctions between explictly deleted, implicitly deleted, and pruned files, a client may prune a file without pruning one of its children.

Privacy

Files, file names, and encryption keys never leave the client unencrypted. In order to support sharing, we give every document a symmetric key (used to encrypt its contents) and every folder a symmetric key (used to encrypt the keys of child folders and documents). This allows users to recursively share folder contents performantly and consistently. It also creates an encryption chain for each document: the document is encrypted with the document's key, which is encrypted with its parent folder's key, which is encrypted with it's parent folders key, all the way up to the root folder whose key is encrypted with the user's account key which is stored on the user's devices and trasferred directly between them as a string or QR code.

This encryption chain, and its interaction with the invariants, creates programming challenges. Our general pattern is to decrypt keys, names, and files as we read them from disk or receive them as responses from the server so that we can write all the remaining logic without worrying about encryption. However, most invariant violations (e.g. orphans and cycles) will cause us to fail to be able to decrypt files, which in turn makes it difficult to detect and appropriately resolve invariant violations.

Offline Editing

The key challenge in offline editing is what to do when concurrent updates are made to files. As previously mentioned, the client maintains two versions of the file tree: one for the current local version (local), and one for the last version known to be agreed upon by the client and server (base). Our ambition is to define a 3-way merge operation for file trees which we can use after pulling the server's version of the file tree (remote) which never results in a invariant violation and which otherwise produces satisfying behavior to users. This operation needs to take place on clients because the server does not have access to decrypted files. Once a client uses the 3-way merge operation to resolve conflicts, they can write their updates back to the server.

For file contents, we can use a standard 3-way file merge operation like the one used by Git. If there are edit conflicts, we resolve them by leaving in both versions along with Git-style annotations of which change came from local vs remote. When a 3-way merge operation doesn't make sense (e.g. for binary files), we can resolve edit conflicts by saving both copies of the file, with one of the files renamed.

For file metadata, we prefer the remote version of a file's name and parent because we think it makes the most sense for the client whose updates reached the server first to have its changes preferred. If either the server or the client deleted a file and the other did not, we resolve the conflict by deleting the file so that file deletions are permanent. File metadata also contain other fields (discussed in the next section) which require careful consideration during a merge.

As mentioned, some invariant violations arise from concurrent multi-device edits, even if the individual devices maintain those invariants locally. Therefore the 3-way merge operation requires additional logic to resolve these constraints in a user-friendly way.

Performance

There are a handful of performance pitfalls which we need to avoid. We pay attention to the time it takes to perform certain operations and the storage space used on users' devices.

When pulling the state of a user's file tree from the server, we need to avoid pulling the whole file tree. We intend for the system to scale to thousands or millions of files per user - the user might have access to a shared folder containing files for their entire company. To this end we track a version for the file in its metdata (metadata_version). The metadata_version for a file is simply the server-assigned timestamp of the file's most recent update, represented as a Unix epoch. When a client fetches updates from the server, it passes the most recent version it knowns of, and the server replies with the new metadata for all files that have been updated since that point. This way, the volume of data pulled scales with the velocity of updates to the user's file tree rather than the size of the file tree.

Pulling the metadata for a file and pulling the content for a file are, in terms of performance, categorically different. A file's contents are generally many orders of magnitude larger than file metadata. When we pull an update for a file, we need to avoid re-pulling the content for the file if it hasn't changed (e.g. if the file was only renamed or moved since the client last checked with the server). To this end, alongside metadata_version, we store a content_version in each metadata which is a server-assigned timestamp of the file's most recent content update. When a client pulls a metadata update, it also pulls the file content if and only if the content_version has changed since it last pulled.

Clients store two versions of the file tree, base and local. In order to save space, we use semantics similar to copy-on-write where the version of a file on local is not saved if it is identical to the version on base. Clients interpret the absence of a local version to mean that local and base are identical. Additionally, we compress files, both before saving to disk and before pushing to the server.

The metadata for deleted files must be eventually pruned on clients so that the amount of space taken on users' devices scales with the number of not-deleted files rather than the total number of files ever created. Deleted files cannot be immediately pruned because the client needs to remember to push the deletion to the server on the next sync. The server keeps track of all file metadata forever (though it deletes contents of deleted files) so that clients can sync after being offline indefinitely and still receive deletion events without the complexity of the server needing to know which clients exist and which updates they have each received.

Design By Concern

Sync v3 operates in the context of many concerns. We'll discuss the design first in terms of how the concerns are addressed one concern at a time, then in terms of the client and server routines that address all these concerns all together. These are the concerns we'll discuss:

  • file deletion
  • invariant violation resolution
  • consistency

File Deletion

As mentioned, files have various states of deletion:

  • not deleted (the file has false value for deleted and no deleted ancestors)
  • explicitly deleted (the file has true value for deleted)
  • implicitly deleted (the file has false value for deleted but has an explicitly deleted ancestor)
  • pruned (there is no mention of file on disk, although it once existed)

First we'll justify the distinction between deleted and pruned. If the file deletion system is working properly, then after a user deletes a file on a device and syncs that device, that device will prune the file and any other devices that sync will prune that file. What's required to make that happen is that the client which deletes the file remembers that the file exists (and is deleted) until that client syncs its changes. Once the changes are synced, the client can prune the file knowing that the server will remember the deletion forever and will inform the other clients of the deletion. Note that deleted documents can have their contents pruned immediately - it is only important to remember the metadata until the deletion is pushed.

Next we'll justify the the distinction between implicit and explicit deletions. What it would mean to not have this distinction is that a file would only be deleted if it is marked explicitly deleted, so in order to delete a folder either the user would have to delete all its children first or the client would have to automatically delete all its children first e.g. recursively delete folders (otherwise those children would become orphans, violating the Orphan Invariant). This would be undesirable because of the behavior of folder deletions in the presence of multiple clients. Consider the case when one client moves a document out of a folder and syncs, then another client deletes the folder and syncs. If a client applied explicit deletions recursively, the second client would delete both the folder and the document, then the next time the other client synced, the document would be deleted even though it was not in the deleted folder. We decided this was unacceptable behavior.

In order to prune a file, we need it to be explictly deleted (and have no descendants that are not explictly deleted and would therefore become orphans), and for its explicit deletion to be synced to the server. If it's only implicitly deleted, then it potentially could have been moved out of its deleted ancestor in an update that we have not yet pulled, so a client cannot yet prune it. This will perpetually be the case for implicitly deleted files unless they are at some point explictly deleted. This means the server is the entity which must ultimately explicitly delete implicitly deleted files. Anytime a set of file updates is pushed to the server, the server explicitly deletes all implicitly deleted files. The next time they pull, clients receive these deletions as updates, which indicates that it is safe for them to prune the files.

Revisiting the earlier example, when a client moves a document out of a folder and syncs, the server becomes aware of that move. Then when another client deletes the folder and syncs, the server marks all implicitly deleted files as explicitly deleted. This does not include the document because the server is already aware that it has been moved. If the first client hadn't synced until after the second client, then the document would have been deleted. This is one of the ways in which we resolve conflicts in favor of the first client to sync.

Note: when a document is implicitly deleted on a device, the device can prune the documents' contents and just keep the metadata which is much smaller. If, after syncing, the document is no longer implicitly deleted, the device can re-pull the contents from the server.

Invariant Violation Resolution

Even if clients individually enfoce invariants, violations can still occur in the presence of concurrent updates. This is a complicated matter.

First, we have to be concerned about the Cycle Invariant. A cycle can occur if a user has two folders, moves the first folder into the second on one client and moves the second folder into the first on another, then syncs them both. A cycle can also involve more folders, if a first folder is moved into a subfolder of a third folder and the third folder is moved into the first folder concurrently.

We also have to be concerned about the Path Conflict Invariant. A path conflict can occur if two clients create files with the same name in the same folder and then sync. Occurrences can also involve a client renaming an existing file in that folder, moving a file into a folder, or after a file edit conflict is resolved by saving a copy of the local version with a new name. Additionally, it must be valid for two files to share a name and parent if one or both of them are deleted.

Finally, we have to be concerned about the Orphan Invariant. An orphan can occur if a client deletes a folder and syncs, then another client moves a file into that folder and syncs, then the initial client syncs again. The initial client will prune the folder after pushing its deletion, then the second client will push the move and the server will mark it as deleted, then the initial client will receive an update to a file for which it does not have the parent. In this situation the client needs to resolve the invariant violation without decrypting the update because the encryption key to decrypt that update lives in the folder's metadata which was already pruned.

There are enough corner cases here to drown in. To handle them, we implement a design where, rather than prevent invariant violations from occurring, the system repairs invariant violations that result from certain combinations of edits from different devices. It does this as part of the sync routine. We found that there's generally a satisfactory way to do this.

To resolve cycles, we rely on the fact that base, local, and remote all individually do not contain any cycles and design the resolution to preserve that. If the result of merging the file trees has a cycle, it must involve an unsynced local move and a remote move the client just pulled from the server. In particular, one of the files in the cycle must have been the subject of an unsynced local move. Our policy to resolve this is, if we discover locally moved files which create a cycle with other files, we unmove all the locally moved files (by setting the parents to their values in base).

To resolve path conflicts, we rely on the fact that base, local, and remote all individually do not contain path conflicts, and therefore that one of the files involved in the conflict was somehow modified locally. Our policy to resolve this is, if we discover a locally modified file whose new name conflicts with another file in the same folder, we rename the locally modified file by appending a number to the pre-extention file name. For example, if a folder contains a new file called notes.txt from the server and a new local file called notes.txt, we rename the local file notes-1.txt. If there is already a notes-1.txt, we instead rename it notes-2.txt.

To resolve orphaned files, we rely on the fact that an update for a file will never be pulled without the parent folder being pulled first. If the parent folder no longer exists locally, it's because the parent folder has been pruned, which only happens if the deletion of that folder has been synced. If the folder deletion has been synced, then the server has explicitly deleted all descendants of the folder, including the orphans. Because deletions can never be undone, any updates to orphaned files can be safely ignored.

I know what you're wondering - does the order of these conflict resolutions matter? Yes it does. Any content conflicts need to be resolved before path conflicts because resolving content conflicts can create new files which can cause path conflicts. Any cycles need to be resolved before path conflicts because resolving cycles can move files which can cause path conflicts. Updates to orphaned files can be ignored at any time because no resolution policy depends on or modifies orphaned files.

Consistency

A great amount of care needs to go into making sure that the invariants are satisfied at all times. The system needs to recover from process interruptions and failures gracefully. We'll inspect the following consistency-related concerns:

  • batch operations
  • concurrent syncs
  • open editors during a sync
  • client crash/interrupt recovery
  • server crash/interrupt recovery

Batch Operations

A key element of the design is that **metadata operations are processed in batches. What this means is that all the changes that are applied to a file tree

  • moves, renames, and deletes - are applied with all the invariants evaluated at the end, rather than evaluated after each operation.** For instance, the server has a single endpoint for uploading a set of changes which are applied atomically, with invariants checked after applying all of them rather than being checked in-between each one. In clients, all new updates from the server are applied before checking invariants and resolving conflicts. To see why this helps, let's consider what our design would look like otherwise.

Consider the case where a user moves a file out of a folder, then creates a new file with the same name in that folder. If these changes are not processed together, then they need to be processed in the order in which they happened, otherwise the new file could be created first which would violate the Path Conflict invariant. Therefore, clients would need to be deliberate about the order in which changes are uploaded to the server. Rather than track the base and local states of the file tree, clients would need to track either base or local and an ordered collection of the changes made (henceforth the changeset) that turned base into local. This would allow the client to reproduce base and local for the sake of 3-way merging; the client could produce local from base and the changeset or could produce base from local and the changeset. The client could also still explicitly store base and local but care would need to be taken to keep them consistent with the changeset.

The changeset cannot be append-only. If a user renames a file, then renames it back to the original name without syncing, the changeset should be empty. This is because the app should not incur the performance cost of syncing an unnecessary pair of changes, as well as because the app should not inidicate to the user that they have outstanding changes to be synced when they do not. In this situation, the combination of renames should cancel out, with both operations being removed from the changeset. However, this can cause problems. Consider the case when the user renames file A, creates a file B in the same folder with the original name, moves file B to a different folder, then renames file A back to its original name. If the client simply removes both renames, then the changeset includes just creating and moving file B. In-between creating and moving file B, file B is still in the same folder as file A with the same name, which violates the Path Conflict invariant. While we could develop a system which cleverly maintains the changeset so that the file tree upholds the invariants in-between each change, it's easier to process operations in batches.

Concurrent Syncs

Sync is not an atomic operation; it consists of multiple steps. For the purposes of this section, it consists of the following 5 steps (the sync routine is discussed in more detail later):

  • pull all updates 1: The client pulls the latest updates to metadata and document content. This is generally when metadata and documents are 3-way merged as clients pull updates made by other clients.
  • push metadata updates: The client pushes metadata updates, which are the local changes that have been made on this client since the last sync. They have been merged with the latest server changes during the previous pull.
  • pull all updates 2: The client pulls the latest updates again. Generally there have been no updates made by other clients and this step just pulls the latest server-assigned metadata_version as well as the deletions that the server made after finding non-deleted files in deleted folders in the previous push.
  • push content updates: The client pushes content updates, which generally resulted from the merge during the initial pull. This is done after the previous step so that we do not push updates to deleted files for performance.
  • pull all updates 3: The client pulls the latest updates again. Generally there have been no updates made by other clients and this step just pulls the latest server-assigned metadata_version and content_version for each file after the updates from the previous push.

Problems can happen when two devices sync concurrently. In particular, problems can happen when one device pushes an update while another device is between the first and second pulls or between the second and third pulls. Consider the case where a user moves a file on device A, renames it on device B, then syncs the devices concurrently such that devices A and B both pull updates, then A pushes metadata updates, then B pushes metadata updates. When device B pulls, the version it pulls will not be affected by the move done on device A because device A has not pushed yet. When device A pushes, it will push a version affected by the move, then when device B pushes, it will push a version affected by the rename but not the move. When A pulls again, it will pull the version affected by the rename but not the move. Effectively, the move will be undone.

To solve this, we implement a basic precondition system. When clients push metadata updates, they are required to pass the current name and parent of the file. If those values have changed since the client last pulled, the client is considered to be pushing changes to an out-of-date version of the file, and the server rejects the updates. Similarly, when clients push document content updates, they are required to pass the current content_version of the document, and the server rejects the update if this is incorrect. When the server rejects the update, sync fails and must be retried, which can happen automatically or be requested by the user. The first step of the next sync pulls whatever updates happened concurrently to block the previous sync and merges those changes in with the local changes before attempting to push again.

A number of alternate preconditions are valid, with each creating a different experience for the user. We chose not to force clients to have the most up-to-date version of the deleted field, instead allowing updates to deleted files, because these operations would make no effect and there is no need to force a new sync. We also chose not to force clients to have the most up-to-date version of the file's contents to update the metadata or to have the most up-to-date version of the file's metadata to update the contents. We made these design choices to balance a strong level of consistency with a lightweight sync process in the event of concurrent syncs.

Open Editors During A Sync

Care must be taken to avoid losing a user's changes to a document when they are editing the document while a sync occurs. Consider the case where a user opens a document for editing on device A, then edits and syncs the same document on device B, then syncs device A while the document is still open for editing. The sync will overwrite the local version of the document with the 3-way merge of the document, but when the user saves the document, the 3-way merge result will be overwritten by the newly edited version, which does not include the changes made on device B. When the user syncs, the new state of the document will be the newly edited version, and other devices that sync will have their versions overwritten to this version i.e. the changes made on device B will be lost forever.

The simplest way to avoid losing changes to document contents that are pulled while a user has an open editor is to lock the editor, which is not ideal. The client should save the document, lock the editor, perform the sync, then re-open the document and unlock the editor. The editor will be updated with content that is the 3-way merge of the pulled change with any local changes, including the changes just made in the editor, and the user can safely resume work.

An alternative design is for the client to hold in-memory the version of the document contents that were read from disk alongside the version the user is editing. When the user saves, read the most up-to-date version of the document from disk (including potential changes pulled during a sync), 3-way merge the up-to-date disk version, editor version, and the inital disk version (using the initial disk version as the base), update the editor to contain the result of the merge, then save the result of the merge. While this complicates the implementation, the changes pulled by any syncs are incorporated both into the open editor and into the version of the document that is saved to disk (and eventually pushed) without locking the UI during a sync.

If desired, a similar process can be used to update the editor after a sync: when the user syncs, read the most up-to-date version of the document from disk (including potential changes pulled during a sync), 3-way merge the up-to-date disk version, editor version, and the inital disk version (using the initial disk version as the base), then update the editor to contain the result of the merge.

Client Recovery

The three key sync-related things that the client stores on disk are file metadata, file contents, and the last synced time. If these are managed properly, then clients are resilient to interruptions. Ultimately, if updates to data on disk are atomic (e.g. by using an embedded database with transaction support), client recovery is not difficult. Let's look at some of the problems we would encounter otherwise.

During a sync, clients check in with the server to pull all updates pushed by other clients since this client last synced. It's okay for a client to pull updates it's already received because updates are idempotent. The server doesn't store and serve every update; it only stores and serves the most recent versions of files. This means that clients are pulling only the latest state of files and it is a no-op to overwrite the latest state of a file with the latest state of that file. While it's okay to receive updates twice, it's not okay for clients to miss updates. Users expect to see the most up-to-date versions of their file trees after syncing. Beyond that, the server checks that clients have a reasonably up-to-date version of the metadata being changed, which prevents updates to out-of-date files in certain cases.

If the metadata updates during a sync are not saved atomically with the update to the last synced time, the update to the last synced time must be saved after the metadata updates. If it's saved first and then the process is interrupted before the metadata updates are saved, then on the next sync, the client will pass a last synced time greater than the metadata_version of any of those files and will not receive updates to those files (until new updates to the files are pushed to the server). The user will be told that their files are up-to-date even though they aren't, and the server will sometimes consistently reject updates to the out-of-date files. If the metadata updates are synced first and the process is interrupted before the new last synced time is saved, then on the next sync, the client will pass a lasy synced time less than the metadata_version of those files and receive the lastest states of them again, which is okay.

We also have to be concerned with synchronizing file metadata and contents. In our implementation we separate the storage of metadata from contents because many operations, like listing all files, can be performed without reading document contents from disk which is more expensive.

If the content updates during a sync are not saved atomically with the metadata updates, the metadata updates must be saved after the document updates. Recall that when a client pulls updates from the server, it pulls metadata updates, and if a metadata update includes a new content_version then it additionally pulls content updates on a file-by-file basis. If the client saves metadata first, then is interrupted before the content updates are saved, then the client will think that the file content is up-to-date when it is not. The user will see an out-of-date version of the files contents, and if they edit it, the client will sync the edits, overwriting the unsaved changes. If the client saves the document contents first, then is interrupted before the metadata updates are saved, then the client will think that the file content is out-of-date when it is not. The user will see that there is an unsynced change even though there isn't, which isn't ideal, but it will go away after this next sync. During the next sync the client will pull the new metadata again, pull the same document content again because the metadata indicates that it has changed, and save the same document content as was already saved. If there has been a local or remote edit to the document in the meantime, the two versions of the documents will be 3-way merged.

These concerns are managable (though they complicate the implementation), but further concerns would need to be raised and addressed about the ordering of saves to base vs local versions of metadata and documents. Overall, atomic writes solve this problem best.

Concern: we don't currently have atomic writes.

Server Recovery

While client recovery is well-served by atomic writes, on the server atomic writes are not possible. This is because document contents and metadata are stored on different databases for performance and cost. All the metadata is stored in one database which supports transactions and all the document contents are stored in a key-value object storage database like S3. The server needs to decide how to save metadata and contents to make sure it can always recover without adverse effects.

Note: server interruptions only happen in the infrequent situations of infrastructure outages, bugs, and planned maintenance. It is acceptable for human intervention to be required, but it is not acceptable for cleanup & reconciliation to be impossible.

If the server saves the metadata for a document, then is interrupted before saving the content, then it will serve the old file contents. If the server saves the content for a document, then is interrupted before saving the metadata, then it will not report the change to the document when clients pull updates. Because of this, there is not simply an order of saves that will keep the server recoverable at all times; something more clever is required.

The server creates and deletes objects rather than mutating them because we need multiple versions to exist to ensure recoverability. To differentiate versions, and to ensure that we are reading document contents which are consistent with the content_version of its metadata, we use the id and content_version as the key for the contents in object storage. When clients request document content, they specify a content_version.

To atomically save metadata and content, the server first saves the new version of the content, then saves the metadata, then deletes the old version of the content. Each of these operations is atomic. If the server is interrupted after only saving the new content version, the new metadata is never saved with the new content version, so clients never request it and the contents are effectively not updated. If the server is interrupted after the new metadata is saved, clients receieve the new metadata with the new content version and the content is effectively updated, but the old version of the file is never cleaned up from object storage. If the update is a deletion, the first step is skipped, but the rest works the same way. The server saves the metadata, then deletes the old version of the content. If the server is interrupted after only saving the metadata, clients will receive the deletion and prune the file when they pull updates, but like with other edits, the old version of the file is never cleaned up from object storage. So, under this design, the system operates safely but will sometimes leave unnecessary objects in storage. The last piece of the server recovery design is to figure out how to remove these old content versions from object storage in the event of an interruption. Note that this process is not urgent; it only affects infrastructure costs to the maintainers to have unnecessary objects in storage.

If the maintainer is willing to take server downtime, object storage can be cleaned after a server interruption by deleting from object storage all the objects whose id, content_version pairs no longer exist for a non-deleted file in metadata storage. The objects that will be deleted are the ones that have been superceded by new versions or that are the contents of deleted files.

If the maintainer is not willing to take server downtime, they need to be careful of ongoing server operations. If they follow the previous process, deleting from object storage all the objects whose id, content_version pairs no longer exist for a non-deleted file in metadata storage, they may delete an object which is the new version of a document currently being updated. If they do, the server will still save the new content version to metadata storage, and clients will request the new version from the server and not find it. The maintainer can tell which files are part of ongoing transactions because the version that no longer exists for a non-deleted file in metadata storage will have a more recent content version than another object that does exist non-deleted in metadata storage. Both files should be left in place, as the server will clean up the remaining file after finishing the ongoing update (or the maintainer will clean up the file in a subsequent cleaning). Therefore, if the maintainer is not willing to take server downtime, object storage can be cleaned after a server interruption by deleting from object storage all the objects whose id, content_version pairs no longer exist for a non-deleted file in metadata storage and for which there is not another object with the same id and a more recent content_version which does exist for a non-deleted file in metadata storage.

However, this is tricky, as one cannot atomically query the state of metadata and object storage (committing the object cleanup can happen separately because once an object is safe to delete, it is forever safe to delete). Further investigation is required to understand whether there is an appropriate way to perform object cleanup in a safe way with zero downtime. For now, downtime is recommended.

Design Routines

With the designs around some of our concerns worked out, we now turn to the specific routines involved in Sync v3 to see what each routine must do to address all concerns. We'll examine the following routines:

  • local metadata edits
  • local content edits
  • push metadata to server (UpsertFileMetadata endpoint)
  • push file content to server (ChangeDocumentContent endpoint)
  • pull metadata updates from server (GetUpdates endpoint)
  • pull document contents from server (GetDocument endpoint)
  • sync

Local Metadata Edits

When a user creates, renames, moves, or deletes a file, the client validates the operation, then updates the local version of the file tree to reflect the operation.

For create, the client validates that:

  • the file is not its own parent
  • the file's name conforms to some rules (e.g. it cannot be empty or contain a slash)
  • the file's parent exists and is a folder
  • there are no files of the same name in its parent folder

For rename, the client validates that:

  • the file is not the root folder
  • the file's new name conforms to some rules (e.g. it cannot be empty or contain a slash)
  • there are no files of the same name in its parent folder

For move, the client validates that:

  • the file's new parent is not itself
  • the file's parent exists and is a folder
  • there are no files of the same name in its parent folder
  • the file is not being moved into one of its subfolders

For delete, the client validates that:

  • the file is not the root folder

Concerns: create unnecessarily checks for invalid cycles

Local Content Edits

When a user modifies a document's contents, the client checks that the file exists and is not deleted, then updates the local version of the file's contents.

Upsert File Metadata

The server exposes an endpoint, UpsertFileMetadata, which accepts a batch of file metadata updates. The file metadata updates are just a file metadata, as well as the name and parent that the client expects the server to have. The endpoint checks the precondition that the existing name and parent are what the client expects - otherwise the server responds with GetUpdatesRequired indicating that the client should pull the latest changes and try again. The server also checks for cycles, path conflicts, root modifications, new roots, and orphaned files - if any of these checks fail, the update is rejected and the server returns GetUpdatesRequired.

If the checks pass, the endpoint inserts or overwrites the metadata for each file with the metadata supplied in the request. It sets the metadata_version to the current timestamp. It explicitly deletes all files with deleted ancestors. Then, it removes any newly deleted files from document storage.

Change Document Content

The server exposes an endpoint, ChangeDocumentContent, which accepts the id of a document to modify, the expected metadata_version, and the new contents of the document. The server checks that the document exists and that the metadata_version matches (otherwise it responds with GetUpdatesRequired), writes the new version of the document to document storage, increments the metadata_version and content_version for the document, and deletes the old version of the document from document storage. The endpoint returns the new content_version for the document.

Get Updates

The server exposes an endpoint, GetUpdates, which accepts a timestamp representing the most recent metadata_version of any update the client has received. The endpoint returns the metadata for all files with a greater metadata_version i.e. all files which have been updated since the client last pulled updates.

Get Document

The server exposes an endpoint, GetDocument, which accepts an id and content_version for a document and returns that version of the document.

Sync

The client has a routine, sync, which is responsible for pulling new updates from the server, resolving conflicts, and pushing local updates. It consists of 5 steps (and additionally prunes deleted files at the end):

  1. pull all updates 1
  2. push metadata updates
  3. pull all updates 2
  4. push content updates
  5. pull all updates 3

These 5 steps run 3 subroutines:

  • pull
  • push metadata
  • push content

Pull

The pull routine is where most of the work in sync happens. First, it pulls updates from the server. If applying those updates to base would cause any updates to apply to orphaned files, those updates are dropped.

Then, each update (remote) is 3-way merged with the base and local version. The 3-way merge resolves conflicts to parent and name in favor of remote changes, if any, and resolves conflicts to deleted by preferring to delete the file. The merge is designed so that if there are no local changes, the result is remote, and if there are no remote changes (this can happen if another client renames a file then renames it back to the original name), the result is local. The remote metadata are buffered as a set of changes to apply to base because after the pull, remote will be a version which has been accounted for by both the client and server on a metadta-by-metadata basis. The metadata resulting from the merge are buffered as a set of changes to apply to local because they represent a version of the metadata that account for local changes that have not yet been synced to the server.

If the content_version in a remote metadata update is greater than the content_version in the base version of that file, then the file is a document that has been updated on the server since the last pull. The client pulls the document, 3-way merges it's contents with local and base, buffers the pulled version as an update to the base version of the document and buffers the merged version as an update to the local version of the document. For file types that are not mergable (inferred by their file extension), a new file is created with the local contents and the local and base contents of the existing file are set to remote version, which is left unmodified as it was read from the server. The new file has the same parent and a file name based on but different from the existing file and all other files in that folder.

Before saving the buffered updates, invariant violations need to be resolved. Cycles are resolved first - any files moved locally that would be involved in a cycle after updates are saved have their parents reset to base. Then, path conflicts are resolved - any locally created or modified file with the same name and parent as a pulled file is renamed. Finally, all metadata and document updates for base and local are saved.

Concern: the logic to determine whether to pull a document currently references the local content_version, which is unnecessary and may introduce unknown bugs.

Concern: should cycle resolution not reset the parents of locally moved files which are also move remotely? is it sufficient to reset the parent of just one file per cycle?

Push Metadata Updates

To push metadata, the client simply collects all metadata which has changed (or been created) since the last push and sends them to the server's UpsertFileMetadata endpoint. If any preconditions fail, sync is aborted, and can be safely retried. The server updates the metadata_version but does not return it; this means that the updates pushed by the client will be pulled during the next update. Then, all files have their base metadata set equal to their local metadata (which are the metadata that were sent to and accepted by the server).

todo: consider optimizing the metadata_version mechanics so that the client doesn't pull every update it pushes

Push Content Updates

To push document content, the client collects all documents which have changed since the last push and sends them to the server's ChangeDocumentContent endpoint. If any preconditions fail, sync is aborted, and can be safely retried. The content_version of each document is used to update it's base and local metadata. Then, all documents have their base contents set equal to their local contents (which are the contents that were sent to and accepted by the server).

Billing

  • Pricing details
  • Data model
  • Stripe Integration
  • Apple Integration
  • Google Integration
  • Bitcoin Integration (later)
  • Monero Integration (later)

Pricing

Pricing will be on an Annual basis or a Monthly basis.

Billing will be:

  • $2.99 / month per 30gb
  • $30 / year per 30gb

Data Model

Upon write operations we want to be able to check to see if a user has space available for this action or not.

We'll keep a table that will store:

  • account
  • tier-max
  • valid_until
  • type -- one of stripe, apple or google
  • billing failed -- boolean to prompt user to go through billing cycle again

Stripe

Used for:

  • macOS
  • Linux
  • Cli
  • Windows

Flow

User performs a sync, a new error type is returned saying they're out of space.

A dialog pops up to explain your situation, allows you to select a plan & a payment method (if you have a choice).

For now Stripe will be our payment processor. Their subscription overview can be found here will be the processing service.

To setup payment for the first time you need to send Plan info and Payment info.

lockbook_server will then:

  1. Create a PaymentMethod
  2. Create a Customer
  3. Create and confirm a SetUpIntent
  4. Create a Subscription

Lockbook server will store StripeUserInfo, a struct containing user's customer_id, payment_method history, and subscription history.

After stripe api calls, lockbook_server will:

  1. store info
  2. cleanup stripe upon failure
  3. look for customer already exists errors

Stripe will inform us about billing success and failures via webhooks. We'll tell them a URL to send info too. Upon failures, stripe will retry, email us and ultimately stop trying. We can also query for missed events and see failures in their UI.

We will likely only need to listen for billing failures. In the case of a billing failure we're going to want to indicate to the user their card was declined. We don't want to just communicate that they're out of space. We want to communicate specifically that their card was declined. Likely what we'll do in this situation is keep them in that tier with that expiry information and set billing_failed to true. Next time they try to write we'll send them to the flow for declined cards. When the new request comes in it will have to complete logic to cancel the old subscription, especially if it's being transfered from one platform to another.

When consuming webhook events we'll need to verify that the event is coming from stripe and not some random person. We listen for two particular events:

  • invoice.payment_failed: To cancel a subscription when a payment failure happens.
  • invoice.paid: To increase period_end of StripeSubscriptionInfo. Currently this is unused but is useful information to have in the future.

Before this flow is completable we'll have to pre-register our prices with stripe.

Billing States

Our current implementation is simple. A user is either subscribed or not. When a user misses a payment or chooses to cancel their subscription, their data cap is immediately reduced to 1 MB.

Testing

A stripe integration can only be tested if provided a secret testing API key. stripe_cli also provides a way to emulate webhook events locally.

Apple Integration

Used for

  • iPhones
  • iPads

We have to use Apple's in app payments because apple forces all the apps on it's appstore to do so. An overview of their subscriptions can be found here.

A good index for docs exists here

Flow

Similar to the flow described for stripe, user goes to sync and encounters an error related to billing. A sheet pops up that tells them either that their card was declined or that they're out of space.

The user clicks one of the buttons for whatever plan they want, apple pay pops up, they complete the flow & get access to more space.

Before this flow is possible we'll have to preconfigure our in-app-purchase with apple. Some more details here.

Similar to the stripe flow, apple's servers will communicate with ours via webhooks. We'll register the webhook and then we'll be able to receive events.

Apple requires ATS.

Unlike stripe which uses crypto for authentication, apple is just using webhooks to avoid their servers being polled. You therefore have apple themselves verify that the message is valid. This is detailed here.

Details for how we'll deal with failures will be similar to stripe's. It's less likely these failures will happen, because this info is apple-id wide. Apple themselves will be promting the user to update their billing info. However, if we receive that event from apple it could indicate what they call voluntary churn which is when a user cancels their subscription for lockbook. We'll follow the card declined flow in this case. Further thought in the future can be given to helping them select files to delete (oldest / least often used) or creating flows to deep-archive files for suspended users.

Testing

TODO

Google integration

Exactly the same as apple's experience. Overview

Pre-register tiers with google

Client side details.

Server side details. Events they send.

The verification happens like apple's, the token is a prompt for you to go and check with google about the status of a subscription, details.

Billing States

There are 4 states of a Google Play subscription (described by the GooglePlayAccountState enum in libs/lb/lb-rs/libs/shared/src/api.rs):

  1. Ok: The user has a valid subscription that is renewing monthly.
  2. Canceled: The user's subscription has been canceled, but they still have premium benefits until the end of their billing cycle.
  3. GracePeriod: The user's subscription is in a grace period for failing to make a payment. They have premium benefits for 7 more days until they are OnHold.
  4. OnHold: The user let their subscription's grace period expire and has lost premium benefits.

Once a subscription expires (either after being OnHold or Canceled), all remaining data about that subscription will be deleted. Also, if a user does a chargeback, their subscription is immediately revoked.

Testing

An integration can be tested locally if a user becomes a license tester. This allows fake payments to be made on a verified Google Play developer account to test debug builds. Paired with a PubSub subscription pointing at your local server instance, you can emulate almost any user interaction involving subscriptions.

Platform Migrations

Due to a smaller service fee on Stripe, there is a strong incentive to migrate users off payment platforms by Google Play and Apple. Therefore, in the future, payment migrations may be implemented.
